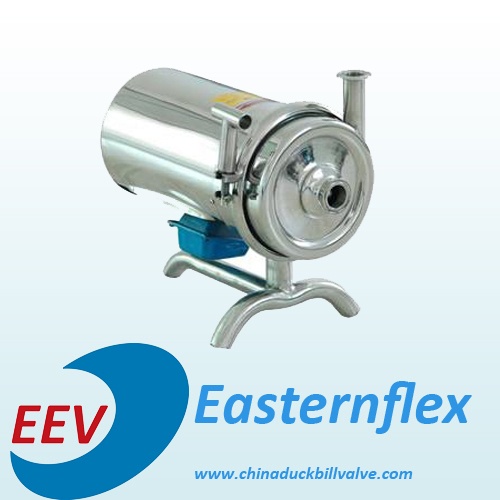

Sanitary centrifugal pump overview:
EEV Sanitary centrifugal pump is widely used for kinds for liquid conveying, such as diary food, beer, beverage, medicine industries. It not only can convey normal low or middle viscosity liquid, but also suspending and corrosive liquid. The max temperature for inlet liquid is about 80℃. High lift design extremely suitable for heavy resistance application.
EEV sanitary centrifugal pump Main technical data
|
Type
|
Flow
(m³/h)
|
Lift
(m)
|
Power
(Kw)
|
Inlet and outlet size
|
|
BAW3-12
|
3
|
12
|
0.75
|
38/32
|
|
BAW5-24
|
5
|
24
|
1.5
|
38
|
|
BAW10-24
|
10
|
24
|
2.2
|
51/38
|
|
BAW10-36
|
10
|
36
|
3
|
51/38
|
|
BAW15-24
|
15
|
24
|
3
|
51
|
|
BAW15-36
|
15
|
36
|
4
|
51
|
|
BAW20-36
|
20
|
36
|
5.5
|
51
|
|
BAW30-24
|
30
|
24
|
5.5
|
63/51
|
|
BAW30-36
|
30
|
36
|
7.5
|
63/51
|
|
BAW40-36
|
40
|
36
|
7.5
|
76/63
|

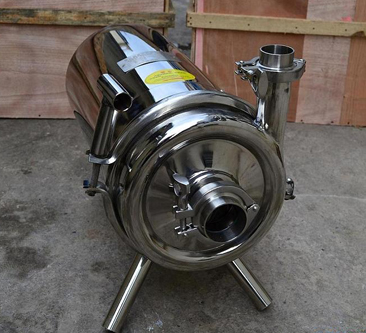

EEV sanitary centrifugal pump construction featured:
The pump is mainly constructed by pump body, impeller, motor, etc. Each part is connected by bolts and nuts. In order to install easily, the bottom bracket can be adjust as customer request. Our pump is designed for CIP with no dead angle and cleanable seals. There is a stainless steel shell covered to protect the motor.
The wetted part of the pump: body, bonnet, impeller are all made by SUS304 which is precision casted. All pump parts are surface treated and cleaned. Due to the simple construction, the pump is easy to disassemble and have low noise featured.
EEV sanitary centrifugal pump specification:
|
Product Name:
|
EEV sanitary centrifugal pump
|
|
Material:
|
SS304/SS316L/1.4301/1.4404
|
|
Seal Material:
|
EPDM, VITON and NBR
|
|
Max. Flow:
|
40m3/h
|
|
Max head:
|
36M
|
|
Max. working temperature:
|
80℃
|
|
Max. working pressure:
|
16bar
|
|
Max speed:
|
1750Rpm
|
|
Mechanical seal:
|
EPDM(Standard)
|
|
Meaing type:
|
Flushed double mechanical seal/single mechanical seal(standard)
|
|
Motor power:
|
0.75kw-7.5kw
|
|
Voltage:
|
210V-380V
|
|
Motor:
|
Chinese domestic brand, can be required by buyer, 50hz/ 60hz
|
|
Surface treatment:
|
Inner polished and Sandblast outside
|
|
Connection:
|
Clamp, Thread, Butt weld, Flange
|
|
Operated:
|
Electric
|
|
Certificate:
|
ISO9001
|
|
Application scope:
|
Dairy, food, beverage, pharmacy, cosmetic, etc
|
|
Packaging Details:
|
Plywood case.
|
|
Delivery details:
|
Usually within 10-20 days after receiving T/T down payment
|
