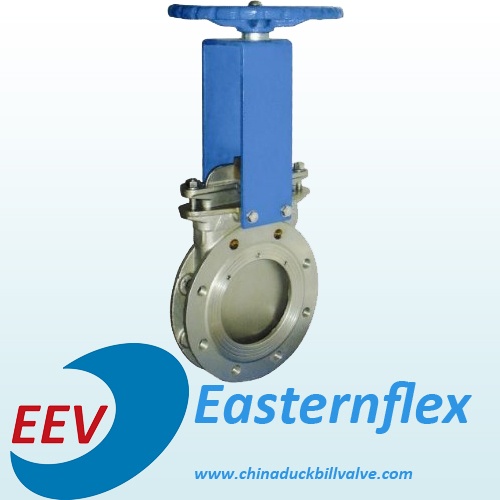

EEV knife gate valve series is designed full bore resilient or metal seated for slurries, powders and sludges. With types flange, wafer, and lugs.

1.       Pressure Rating:

10bars 2’’-24’’, 5 bars 36’’.

2.       Sizes ：

available from 2’’ to 80’’.

3.       Temperature rating:

EPDM Seat: -20 ℃ to 110 ℃

Viton Seat: -20℃ to 130 ℃

Metal Seat：-45℃ to 230 ℃

4.       Flange drilling:

ANSI 125/150 Class

DIN, BS or other standard is available,

consult us for more information

5.       Testing:

Each EEV Knife gate valve is fully tested in our factory before delivery. Test includes shell test, seat test. Additional testing is also available. Consult us for your request.

• Standard Shell test: Hydro test at 1.5 times the rated – Zero allowable leakage

• Standard Resilient Seat test: Hydraulic test at 15 psi (1 bar) and rated
